Electric heater
Electric heater

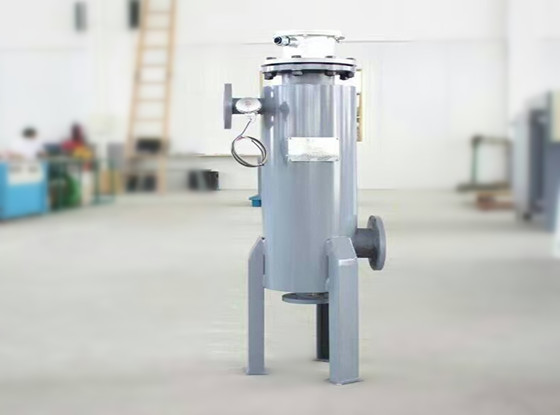

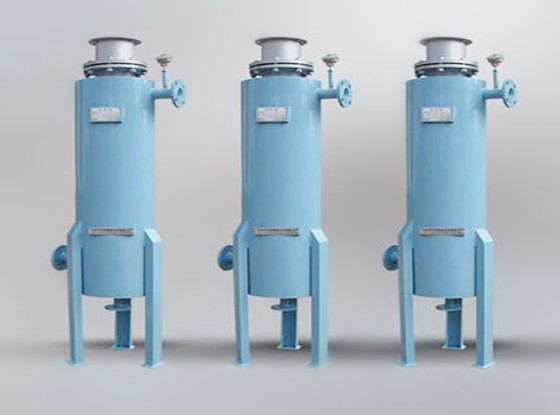

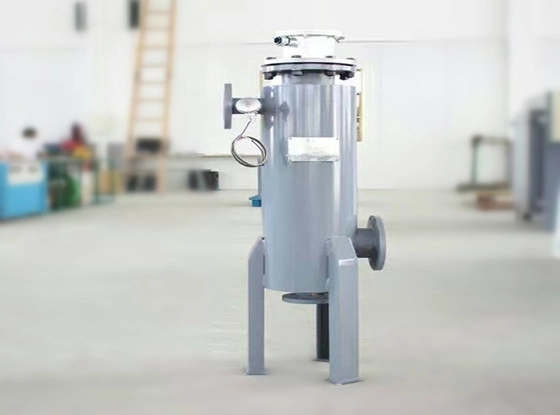

Hot air heater
Functional Characteristics Specification Parameter
  • 1, the temperature rise and temperature drop rate is fast, up to 10 ° C / S, the regulation is fast and stable. There is no leading temperature and leading hysteresis of the controlled gas, which makes the temperature control drift uncertain. It is suitable for automatic control.
    2. High efficiency.
    3, good mechanical properties: because its heating element is alloy material, it is better than any heating element under the impact of high pressure gas flow, which is a system that needs to continuously heat the gas for a long time. And the attachment test is more advantageous.
    4. The gas can be heated to a very high temperature.
    5. Durable when not in violation of the use rules.
    6, the gas is clean, small size.
    7, can be designed according to the needs of users, a variety of types
    8, the outlet temperature and flow controllable, frequency control
    9, single power from 2KW ~ 2000KW series
  • Rated voltage:220V、380V
    Nominal power:2KW~2000KW
    Explosion-proof grade:ExdⅡBT1-4
    Temperature control method:Automatic temperature control
    Temperature control accuracy:±1℃
Hot air heaters are primarily used to heat the desired gas stream from the initial temperature to the desired gas temperature up to 800 °C. It is especially suitable for automatic temperature control and high flow high temperature combined system and accessory test. The hot air circulating air heater has a wide range of use: it can heat any gas, and the generated hot gas is dry, non-conductive, non-conductive, non-explosive, non-chemically corrosive, non-polluting, stable and reliable, and the heated space is heated up quickly. (controllable)
